Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 39S252C
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
SMD Power Inductor For Power Plant Control Equipment 39S252C |
Usage: |
For Power Plant Control Equipment |
Product Type:: |
SMT Power Inductor |
Operating Temperature Range: |
–40 ºC To +125 ºC |
Termination Type: |
Surface Mount |
Package: |
Tape / Reel |
Product Name: |
SMD Power Inductor For Power Plant Control Equipment 39S252C |
Usage: |
For Power Plant Control Equipment |
Product Type:: |
SMT Power Inductor |
Operating Temperature Range: |
–40 ºC To +125 ºC |
Termination Type: |
Surface Mount |
Package: |
Tape / Reel |
SMD Power Inductor for Power plant control equipment 39S252C
Feature:
Applications
Electrical Properties:
| Part number | Inductance (100kHz, 0.1VAC) | DC Current | Saturation Current2 | DC Resistance |
| ±20% | Max | Typ. | Max. | |
| μH | A | A | mΩ | |
| 39S681C | 0.68 ±30% | 19.5 | 20.4 | 1.9 |
| 39S152C | 1.50 ±30% | 13.5 | 14.0 | 2.5 |
| 39S252C | 2.50 | 10.0 | 10.0 | 3.9 |
| 39S402C | 4.00 | 8.3 | 8.3 | 5.4 |
| 39S602C | 6.00 | 6.7 | 6.7 | 8.0 |
| 39S822C | 8.20 | 5.8 | 5.8 | 11.4 |
| 39S103C | 10.0 | 5.0 | 5.0 | 13.5 |
| 39H471C | 0.47 ±30% | 19.5 | 28.8 | 1.9 |
| 39H102C | 1.00 | 17.5 | 20.0 | 2.5 |
| 39H182C | 1.80 | 13.5 | 15.3 | 3.9 |
| 39H282C | 2.80 | 11.0 | 12.3 | 5.4 |
| 39H402C | 4.00 | 9.7 | 10.3 | 8.0 |
| 39H562C | 5.60 | 8.2 | 8.8 | 11.4 |
| 39H722C | 7.20 | 6.6 | 7.8 | 13.5 |
| 39U351C | 0.35 ±30% | 19.5 | 35.0 | 1.9 |
| 39U801C | 0.80 ±30% | 18.0 | 25.7 | 2.5 |
| 39U142C | 1.40 | 13.5 | 19.2 | 3.9 |
| 39U222C | 2.20 | 11.0 | 14.8 | 5.4 |
| 39U322C | 3.20 | 9.7 | 12.8 | 8.0 |
| 39U432C | 4.30 | 8.2 | 11 | 11.4 |
| 39U562C | 5.60 | 6.6 | 9.5 | 13.5 |
SMD Power Inductor for Power plant control equipment 39S252C
Shape and Dimensions:

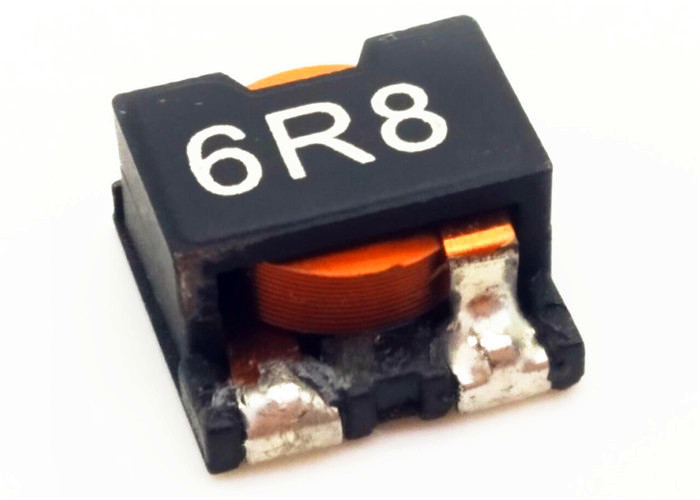

Product picture:
SMD Power Inductor for Power plant control equipment 39S252C
