Product Name: |
Shareway Molded Inductors SMD RoHS Compliant Alternative Of XEL4012 XEL4014 |
Product Type: |
SMD Power Inductor |
Core Material: |
Composite |
Mounted: |
Surface Mounted |
Inductance: |
From 92nH To 780nH |
DCR: |
From 5.2mΩ To 20.3mΩ |
SRF: |
From 279MHz To 70MHz |
Operating Temperature: |
–40°C To +125°C With (40°C Rise) Irms Current |
Operating Voltage: |
0-80V |
Package: |
Tape/Reel |
Product Name: |
Shareway Molded Inductors SMD RoHS Compliant Alternative Of XEL4012 XEL4014 |
Product Type: |
SMD Power Inductor |
Core Material: |
Composite |
Mounted: |
Surface Mounted |
Inductance: |
From 92nH To 780nH |
DCR: |
From 5.2mΩ To 20.3mΩ |
SRF: |
From 279MHz To 70MHz |
Operating Temperature: |
–40°C To +125°C With (40°C Rise) Irms Current |
Operating Voltage: |
0-80V |
Package: |
Tape/Reel |
Shareway Molded Inductors SMD RoHS Compliant Alternative of XEL4012 XEL4014
Features
Superior current handling with soft saturation characteristics.
Extremely low DCR and ultra low AC losses for high switching frequencies (2 to 5 MHz).
Can withstand high current spike.
Magnetically shielded to minimize EMI.
Composite construction minimizes audible buzzing.
No thermal aging – perfect for high-temperature applications.
RoHS compliant, Halogen free.
Electrical Specification
|
Inductance ±20% Tolerance |
DCR (Typ) |
DCR (Max) |
SRF (Typ) |
Isat |
Irms (20°C rise) |
Irms (40°C rise) |
| 92 nH | 5.2 mΩ | 5.7 mΩ | 279 MHz | 24.0 A | 11.5 A | 16.5 A |
| 220 nH |
9.7 mΩ |
10.6 mΩ | 146 MHz | 16.0 A | 6.5 A | 9.0 A |
| 220 nH | 7.5 mΩ | 9.5 mΩ | 150 MHz | 18.2 A | 9.0 A | 12.0 A |
| 330 nH | 9.9 mΩ | 12.0 mΩ | 110 MHz | 14.6 A | 6.5 A | 9.0 A |
| 560 nH | 16.5 mΩ | 18.4 mΩ | 80 MHz | 11.6 A | 5.5 A | 7.5 A |
| 780 nH | 20.3 mΩ | 22.8 mΩ | 70 MHz | 9.8 A | 5.0 A | 6.5 A |
Drawing & Dimension

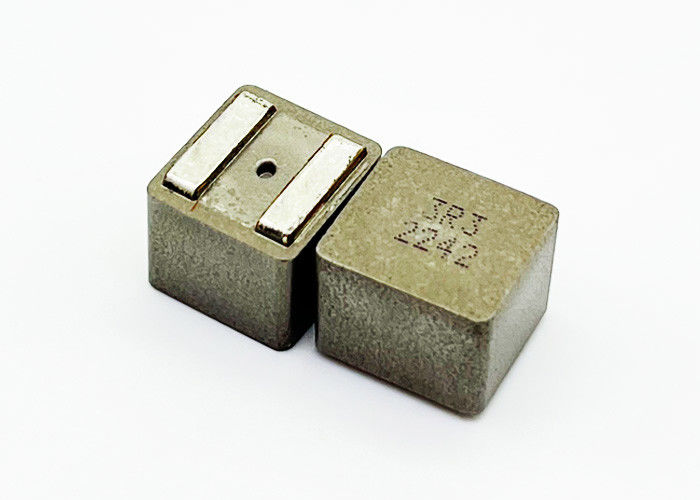

Product Picture
