Product Name: |
750341603 SMPS Flyback Transformer Low Leakage Inductance THT |
Usage: |
For Factory Automation |
Mount: |
Through-hole |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
1.80 MH |
Package: |
Tape&Reel |
Product Name: |
750341603 SMPS Flyback Transformer Low Leakage Inductance THT |
Usage: |
For Factory Automation |
Mount: |
Through-hole |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
1.80 MH |
Package: |
Tape&Reel |
750341603 SMPS Flyback Transformer Low leakage inductance THT
Characteristics
Applications
Electrical Properties:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C.RESISTANCE 4-5 |
@20℃ |
1.725 ohms max. |
|
D.C.RESISTANCE 5-1 |
@20℃ |
2.265 ohms max. |
|
D.C.RESISTANCE 3-2 |
@20℃ |
1.035 ohms max. |
| D.C.RESISTANCE 9-7 | @20℃ | 0.145 ohms max. |
|
INDUCTANCE 4-1 |
70kHz,100mVAC,Ls |
1.80 mH ±10% |
|
LEAKAGE INDUCTANCE 4-1 |
tie(2+3+7+9), 70kHz,100mVAC,Ls |
25 uH max. |
|
DIELECTRIC 1-9 |
tie(3+4),4500AC,1 second |
- |
| DIELECTRIC 1-core | tie(3+4),1500AC,1 second | - |
| DIELECTRIC 9-core | 1500VAC,1 second | - |
| DIELECTRIC 1-2 | 625VAC,1 second | - |
|
TURNS RATI0 |
(4-1):(3-2) |
5:1 |
| TURNS RATI0 | (4-1):(9-7) | 5:1 |
Shape and Dimensions:

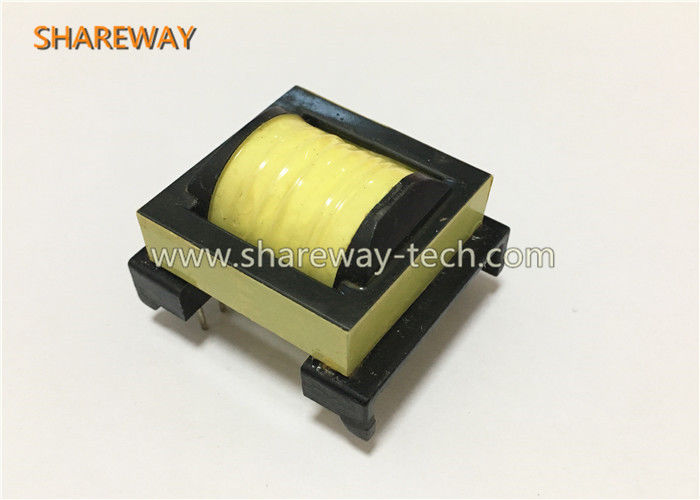

Product picture:
750341603 SMPS Flyback Transformer Low leakage inductance THT
