Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 744308015
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
HCM SMT High Current Flat Wire Inductor For Power PC 744308015 |
Usage: |
For Power PC |
Mount: |
Surface Mount |
Product Type:: |
Common Mode Power Line Choke |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
150 NH |
Package: |
Tape / Reel |
Product Name: |
HCM SMT High Current Flat Wire Inductor For Power PC 744308015 |
Usage: |
For Power PC |
Mount: |
Surface Mount |
Product Type:: |
Common Mode Power Line Choke |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
150 NH |
Package: |
Tape / Reel |
HCM SMT High Current Flat Wire Inductor for Power PC 744308015
Applications
Characteristics
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | 100 kHz/ 10 mA | 150 | nH | ±20% |
| Rated Inductance | L R | 100 kHz/ 10 mA/ 25.0 A | 150 | nH | typ. |
| Rated Current | I R,40K | ΔT = 40 K | 25 | A | max. |
| Performance Rated Current 1) | I RP,40K Δ | ΔT = 40 K | 54.3 | A | max. |
| Saturation Current @ 10% | I SAT,10% | |ΔL/L| < 10 % | 53.8 | A | typ. |
| Saturation Current @ 30% | I SAT,30% | |ΔL/L| < 30 % | 60.7 | A | typ. |
| DC Resistance | RDC | @ 20 °C | 0.37 | mΩ | ±7% |
| Self Resonant Frequency | f res | 60 | MHz | typ. |
Shape and Dimensions:

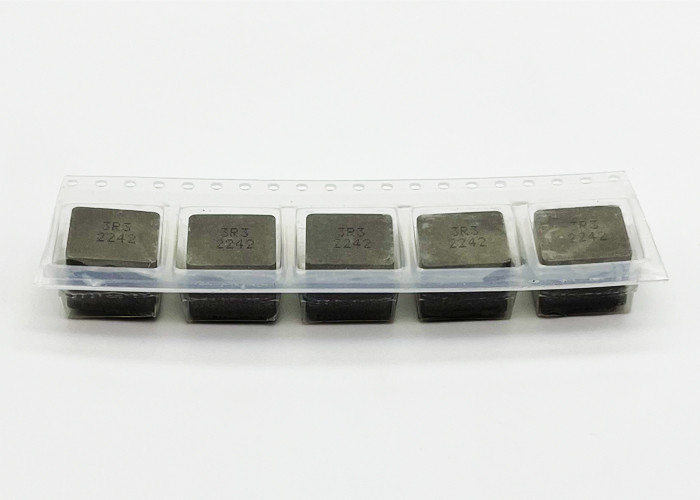

Product picture:
HCM SMT High Current Flat Wire Inductor for Power PC 744308015
About us
ShareWay Technology CO., LTD. is a specialized manufacturer of PoE Components, products include PoE transformer, PoE RJ45 Magjack, PoE Lan Transformer, PoE Lan filter, and so on.
Established in 1998, we have around 500 staff at present. With the abundant productive capacity, we are able to deliver the goods within a short time. Moreover, we can provide a professional complete solution for PoE applications. Our products are widely used in networking and communication equipment such as HUB, PC cards, Switch, Route, PC Mainboard, SDH, PDH, and xDSL modems.
Company History
1997 ShareWay Technology CO., LTD. was founded in Shenzhen, Guangdong, China. Start selling the
discrete LAN Transformers, T1/E1 and xDSL Line Transformer.
1999 Established production base in Shenzhen, start producing the PoE Transformers, T1/E1
and xDSL Line Transformer.
2000 Obtained the ISO9000 certification.
2000 Develop PoE RJ45 connector which is with LAN transformers.
2002 Develop SMT and Vertical PoE RJ45 connector with magnetic.
2008 Develop SMT/DIP Power Inductor and Chokes
Contact us now to have a solution for your project and new design, we are always ready to share our successful Way with you.
HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods are finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are available.
2. Price is negotiable for orders of large quantities.
3. Customized orders (OEM/ODM orders) are available.
4. Contact us for the available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternatives for Halo, Pluse, We-online, Chilisin, and Coilcraft......Same quality but better price
3. Free samples available
4. Provide new design for customer
