Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 7491196331
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
Power Over Ethernet Transformer For Safety Cameras 7491196331 |
Usage: |
For Safety Cameras |
Mount: |
Surface Mount |
Product Type:: |
PoEH Power Over Ethernet High Power Transformer |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
128 µH |
Package: |
Tape / Reel |
Product Name: |
Power Over Ethernet Transformer For Safety Cameras 7491196331 |
Usage: |
For Safety Cameras |
Mount: |
Surface Mount |
Product Type:: |
PoEH Power Over Ethernet High Power Transformer |
Operating Temperature Range: |
-40 °C Up To +125 °C |
Inductance: |
128 µH |
Package: |
Tape / Reel |
Power Over Ethernet Transformer for Safety cameras 7491196331
Applications
Characteristics
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | N1/ 100 kHz/ 100 mV | 128 | uH | ±10% |
| Turns Ratio | n | N1 : N2 : N3 : N4 | 3.2:1:1:2.8 | ||
| Saturation Current | I SAT | N1/ |ΔL/L| < 20 % | 1.1 | A | typ |
| DC Resistance 1 | RDC 1 | N1/ 20 °C | 70 | mΩ | max |
| DC Resistance 2 | RDC 2 | N2/ 20 °C | 14 | mΩ | max |
| DC Resistance 3 | RDC 3 | N3/ 20 °C | 16 | mΩ | max |
| DC Resistance 4 | RDC 4 | N4/ 20 °C | 350 | mΩ | max. |
| Leakage Inductance | L S | N1/ 100 kHz/ 100 mV | 0.5 | µH | max. |
| Insulation Test Voltage | VT | N1,4 => N2,3 | 1500 | V (AC) | |
| Insulation Test Voltage | VT 2 | N2 => N3, N1 => N4 | 500 | V (AC) | |
| Voltage-µSecond | ∫Udt | B = 280 mT | 142 | µVs | typ. |
Shape and Dimensions:

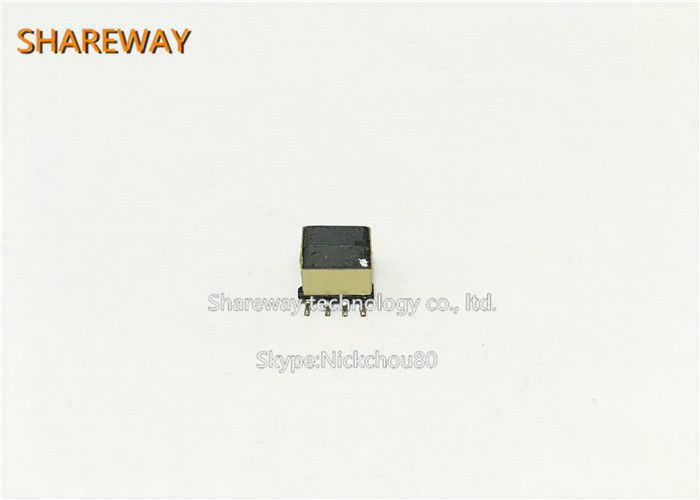

Product picture:
Power Over Ethernet Transformer for Safety cameras 7491196331
