Product Name: |
SMD SMPS Flyback Transformer For Industrial Controls 750316908 |
Usage: |
For Industrial Controls |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
450.00uH |
Package: |
Tape&Reel |
Product Name: |
SMD SMPS Flyback Transformer For Industrial Controls 750316908 |
Usage: |
For Industrial Controls |
Mount: |
Surface Mount |
Product Type:: |
Flyback Transformers |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
450.00uH |
Package: |
Tape&Reel |
SMD SMPS Flyback Transformer for Industrial controls 750316908
Characteristics
Applications
Electrical Properties:
|
PARAMETER |
TEST CONDITIONS |
VALUE |
|
D.C.RESISTANCE 1-2 |
@20℃ |
0.076 ohms ±10% |
|
D.C.RESISTANCE 3-5 |
@20℃ |
1.150 ohms ±10% |
|
D.C.RESISTANCE 7-9 |
@20℃ |
0.090 ohms ±10% |
|
D.C.RESISTANCE 10-7 |
tie(8+9),020℃ |
0.340 ohms ±10% |
|
INDUCTANCE 3-5 |
10kHz,100mVAC,Ls |
450.00uH ±10% |
|
SATURATION CURRENT 3-5 |
20%rolloff from initial |
500mA |
|
LEAKAGE INDUCTANCE 3-5 |
tie(1+2,7+8+9+10), 100kHz,100mVAC,Ls |
3uH typ.,6uH max. |
|
DIELECTRIC 3-10 |
tie(1+5,8+9), 3000VAC,1 second |
- |
|
DIELECTRIC 1-3 |
625VAC,1 second |
|
|
TURNS RATI0 |
(3-5):(9-7) |
13.5:1,±1% |
|
TURNS RATI0 |
(3-5):(10-7),tie(8+9) |
3.38:1,±1% |
|
TURNS RATI0 |
(3-5):(1-2) |
9:1,±1% |
Shape and Dimensions:
Product picture:

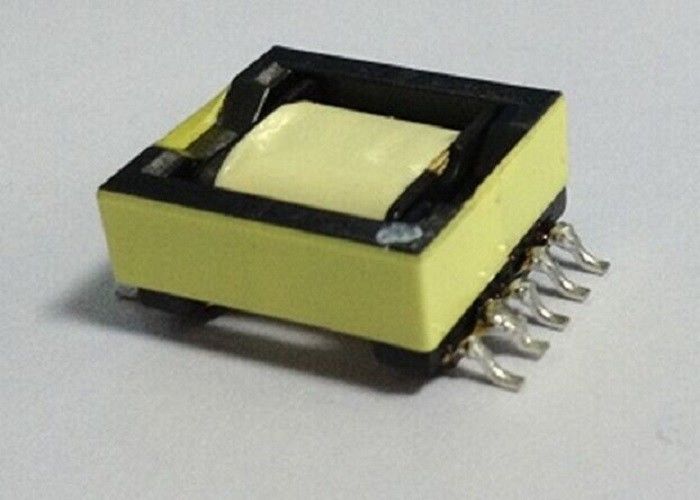

SMD SMPS Flyback Transformer for Industrial controls 750316908
