Product Details
Place of Origin: Guangdong China
Brand Name: Shareway
Certification: CE UL RoHS ISO9001:2008
Model Number: 7446630027
Payment & Shipping Terms
Minimum Order Quantity: 100pcs
Price: Supportive
Packaging Details: 500 parts per full reel
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypal
Supply Ability: 5000K.PCS/Month
Product Name: |
Surface Mount SMD SMT Common Mode Power Line Choke 7446630027 |
Usage: |
For Mains Filter |
Mount: |
Surface Mount |
Product Type:: |
SMT Common Mode Power Line Choke |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
27 MH |
Package: |
Tape&Reel |
Product Name: |
Surface Mount SMD SMT Common Mode Power Line Choke 7446630027 |
Usage: |
For Mains Filter |
Mount: |
Surface Mount |
Product Type:: |
SMT Common Mode Power Line Choke |
Operating Temperature Range: |
-40°C To 125°C |
Inductance: |
27 MH |
Package: |
Tape&Reel |
Surface Mount SMD SMT Common Mode Power Line Choke 7446630027
Characteristics
Applications
Electrical Properties:
| Properties | Test conditions | Value | Unit | Tol. | |
| Inductance | L | 10 kHz/ 0.1 mA | 27 | mH | ±30% |
| Leakage Inductance | L S | 100 kHz | 253 | µH | typ. |
| Rated Current | @ 70 °C | 0.6 | A | max. | |
| DC Resistance | RDC | @ 20 °C | 1.2 | Ω | max. |
| Rated Voltage | VR | 50 Hz | 250 | V (AC) | max. |
| Insulation Test Voltage | VT | 50 Hz/ 5 mA/ 2 sec. | 1500 | V (AC) |
Shape and Dimensions:

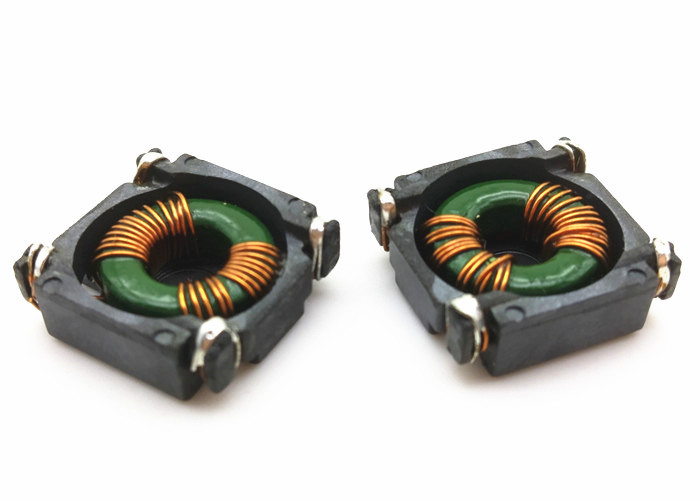

Product picture:
Surface Mount SMD SMT Common Mode Power Line Choke 7446630027
