Product Details
Place of Origin: Guangdong,China
Brand Name: Shareway
Certification: RoHS,CE,Reach,AEC-Q200
Model Number: ST4618NL ST4818NL
Payment & Shipping Terms
Minimum Order Quantity: 500/1000
Price: Negotion
Packaging Details: Tape& Reel/Tray/ Tube
Delivery Time: Stock Or 3~6 weeks
Payment Terms: TT,Paypal,West Union, Western Union
Supply Ability: 100k-pcs/month
Product Name: |

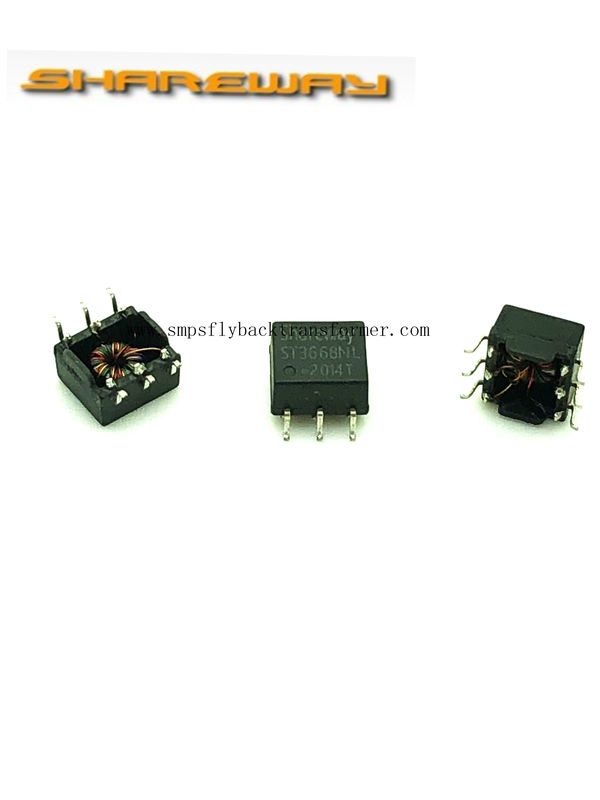

HCT Series - High Clearance And Creepage Distance Transformers For SN6501 SN6505B |
Category: |
Isolation Transformers |
Weight: |
40~60 Mg |
Geometryl: |
Toroidal |
Amblent Temperature: |
-40℃~+85℃ |
For Chipset: |
SN6501 SN6505N |
Low Profile: |
Yes |
RoHS Compliant: |
Yes |
Product Name: |
HCT Series - High Clearance And Creepage Distance Transformers For SN6501 SN6505B |
Category: |
Isolation Transformers |
Weight: |
40~60 Mg |
Geometryl: |
Toroidal |
Amblent Temperature: |
-40℃~+85℃ |
For Chipset: |
SN6501 SN6505N |
Low Profile: |
Yes |
RoHS Compliant: |
Yes |
Features of the HCT Series Transformer:
Electrical Specifications:
| Part Number | Trader Part Number | Primary Inductance @100 kHz ; L 1-3 uH Min | Leakage Inductance @ 100kHz 0.1V (with all secondary pins shorted) ; Lk 1-3 uH Max | Turn Ratio (1-3):(6-4) | Primary DCR ohm Max | Secondary DCR ohm Max |
| ST4618NL | HCTSM80101AAL | 250 | 0.8 | 1:1 | 0.30 | 0.20 |
| ST4619NL | HCTSM80102AAL | 250 | 0.6 | 1:2 | 0.30 | 0.35 |
| ST4620NL | HCTSM80201AAL | 250 | 1.2 | 2:1 | 0.30 | 0.15 |
| ST4621NL | HCTSM80304BAL | 300 | 0.6 | 3:4 | 0.30 | 0.30 |
| ST4622NL | HCTSM80305BAL | 300 | 0.6 | 3:5 | 0.30 | 0.30 |
| ST4623NL | HCTSM80308BAL | 300 | 0.7 | 3:8 | 0.50 | 0.85 |
| ST4624NL | HCTSM80403AAL | 250 | 0.8 | 4:3 | 0.30 | 0.20 |
| ST4625NL | HCTSM80803AAL | 250 | 1.8 | 8:3 | 0.30 | 0.15 |
| ST4626NL | HCTSM80809AAL | 250 | 0.6 | 8:9 | 0.30 | 0.25 |
| ST4627NL | HCTSM80910BAL | 300 | 0.9 | 9:10 | 0.30 | 0.25 |
| ST4628NL | HCTSM81017CAL | 350 | 0.9 | 10:17 | 0.42 | 0.48 |
Dimensions of ST46xxNL series :
Designed for isolation power supplies using Texas Instruments SN6501 and SN6505B
RF Wideband transformer:
Why us?
Working with worldwide TOP brand customers including Honeywell, Jabil, NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).
Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.
Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch NorthBound Networks.
NorthBound Networks is the OEM for this project.
